Setting up data.syn.bike
syn.bike have a very nice website that can be used to visualize BODAQS data. If you don’t have an appetite for Jupyter Lab notebooks, this is a great way to view your logs.
Configuring data.syn.bike
Section titled “Configuring data.syn.bike”data.syn.bike uses a small local executable to process log files. Download it from the ‘settings’ tab and place it in a suitable directory.
Double-click the executable to run it - a terminal window should open and the website will give you a message to show that the processing server is connected. As you use data.syn.bike this terminal window will report what it is doing (if you’re interested).
Whenever you use data.syn.bike you will need to have it running

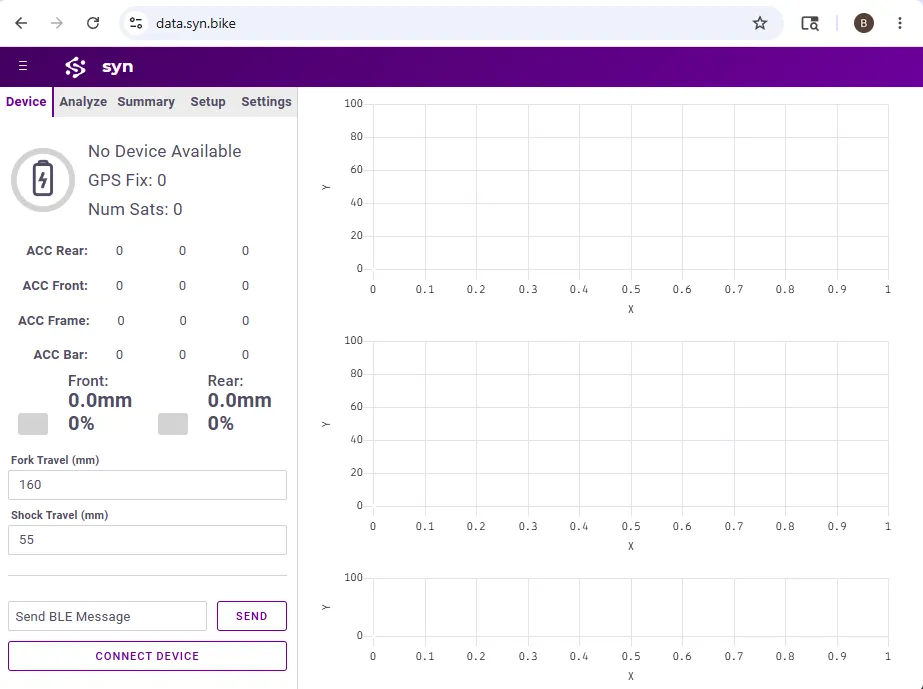

Go to the ‘device’ tab and ensure the fork travel and shock travel are correctly set.
Next, go to the ‘settings’ tab and ensure the following settings are correct:
- Front and rear sensor travels: These should be the full-range travel figures for your sensors, not your bike’s suspension travel.
- Log frequency: This should match the sample rate at which you collected your data.
- Analog resolution: leave this at 12 bits.
- Wheel diameter and number of speed sensor magnets: Not used. You can ignore these.
- Invert analog data: ordinarily leave set to ‘off’. If you have wired your sensors so their output is inverted, switch it.
- Position lowpass filter and zero crossing noise threshold: Leave these at their default values.
- Processing server location: set to
http://127.0.0.1:5079
